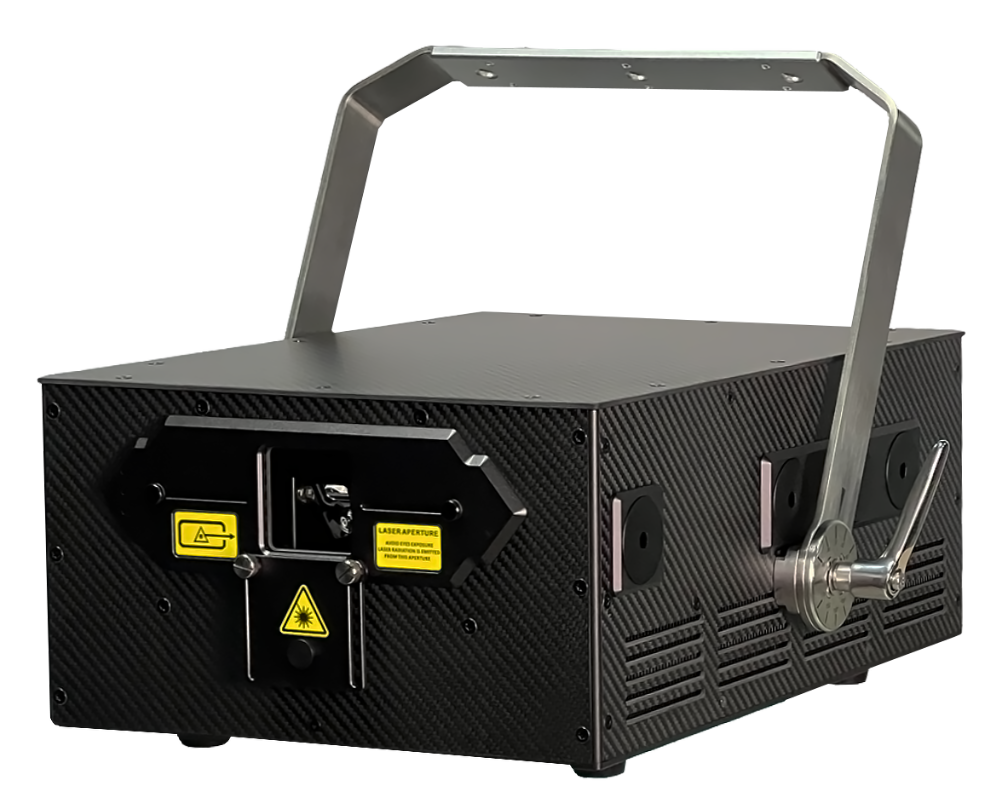

CF70000-RGB

Precision-Driven Performance Digital Driver Technology: Ensures ultra-stable output with zero lag, delivering pinpoint color accuracy across the spectrum, from deep blues to vibrant reds. Advanced Linearity Control: Say goodbye to distortion. Patented optics maintain perfect beam alignment even during high-speed movements. Unmatched Versatility ILDA/DMX compliant for seamless compatibility with any DB25 DAC, and DMX512 industry-standard controllers. Fanless Cooling System: Silent operation ideal for theatrical shows and indoor events (noise level: <28dB). Upgraded Safety & Reliability Smart Thermal Management: Auto-adjusts power to prevent overheating (IP54-rated enclosures protect critical components).
Class IV Certified: Compliant with global laser safety regulations.

Product Parameters

Video Presentation

Data Download

Specification

ModelCF70000-RGB
Source | Type:Semiconductor diode | Full-colour RGB laser projector

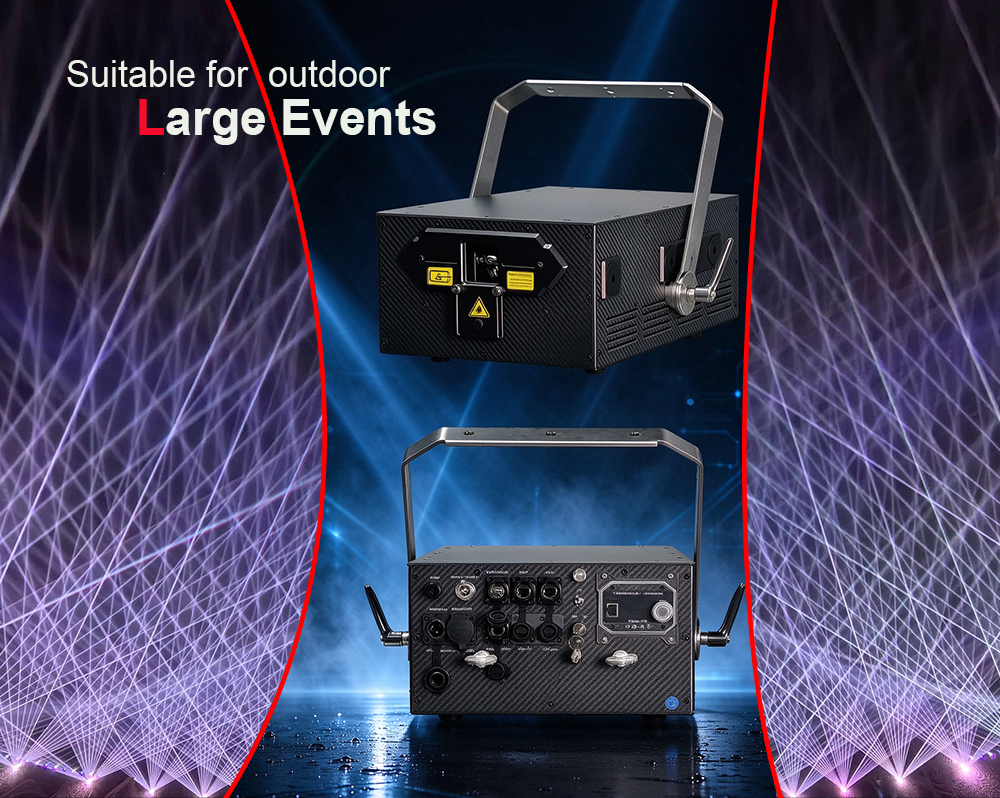

Suitability:Indoor/outdoor laser displays [atmospheric, abstract, text, animations]
Beam Size@Aperture[mm]7*12.0mm
Divergence(full angle)1.0mrad
System controlAuto, SD-Card, DMX512 , ILDA ( FB4 on request)
Scanning System30kpps ILDA@8°, scan angle 53° max
Wavelength [nm]R|638        G|520nm  B|450+465nm
Laser head Power [mW]R|19000   G|20000   B|31000
Total Output [W]70W
Modulation [kHz]100 | Analogue
Power Supply100~240V /50~60Hz
Power Consumption [W]<600W
Weight [kg]23.70Kg
Size [WxHxD, mm]511*490*380mm(full size); 460*330*197mm(without bracket)
Cooling:Heatsink+TEC Cooling+Carbon-fiber+Fans
Packaging:Road case
Operation temperature [°C]:minus 20℃ to 40℃
