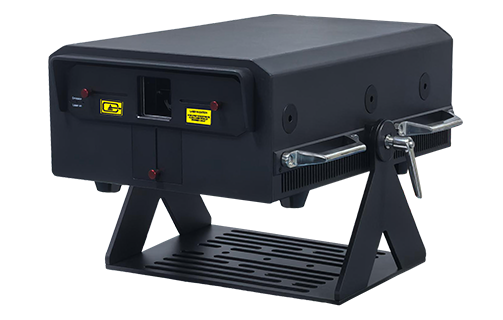

GT100000-RGB

Versatility: Suitable for a wide range of applications—from concerts and
corporate events to architectural lighting and live shows—high-power lasers
offer flexibility to meet diverse creative and technical requirements.
Safety Features: Equipped with advanced safety mechanisms, such as automatic
shutdown in case of malfunction or beam misalignment, these lasers ensure
user and audience safety during operation.
Sleek Design: Compact and ergonomic designs, combined with features like
4-way handles, make transportation, installation, and setup hassle-free, even for
complex events.

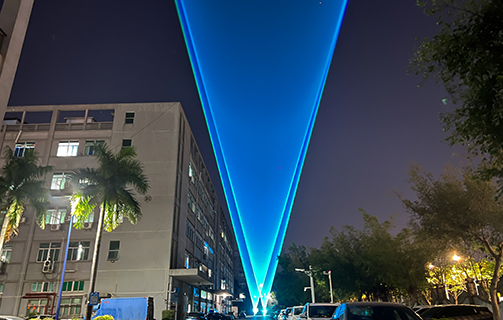

Long-Range Performance: With the ability to project over distances of 5-7
kilometers or more, high-power lasers are ideal for large-scale events, stadiums,
and outdoor festivals, ensuring the audience can enjoy the show from afar.

Product Parameters

Video Presentation

Data Download

Specification

ModelGT100000-RGB
Source | Type:Semiconductor diode | Full-colour RGB laser projector
Suitability:Outdoor laser displays [atmospheric, abstract, text, animations]
Beam Size@Aperture[mm]9.0*10.0mm
Divergence(full angle)0.95mrad
System controlAuto, SD-Card, DMX512 , ILDA ( FB4 on request)
Scanning System20kpps ILDA@8°, scan angle 40° max
Wavelength [nm]R|638        G|525nm   B|450nm
Laser head Power [mW]R|30000   G|35000     B|46000
Total Output [W]100W
Modulation [kHz]100 | Analogue
Power Supply100~240V /50~60Hz
Power Consumption [W]<1200
Weight [kg]35.40Kg
Size [WxHxD, mm]358*215*587mm [excl. stand/bracket]
Cooling:Heatsink+TEC Cooling+Carbon-fiber+Fans
Packaging:Road case
Operation temperature [°C]:minus 20℃ to 40℃
