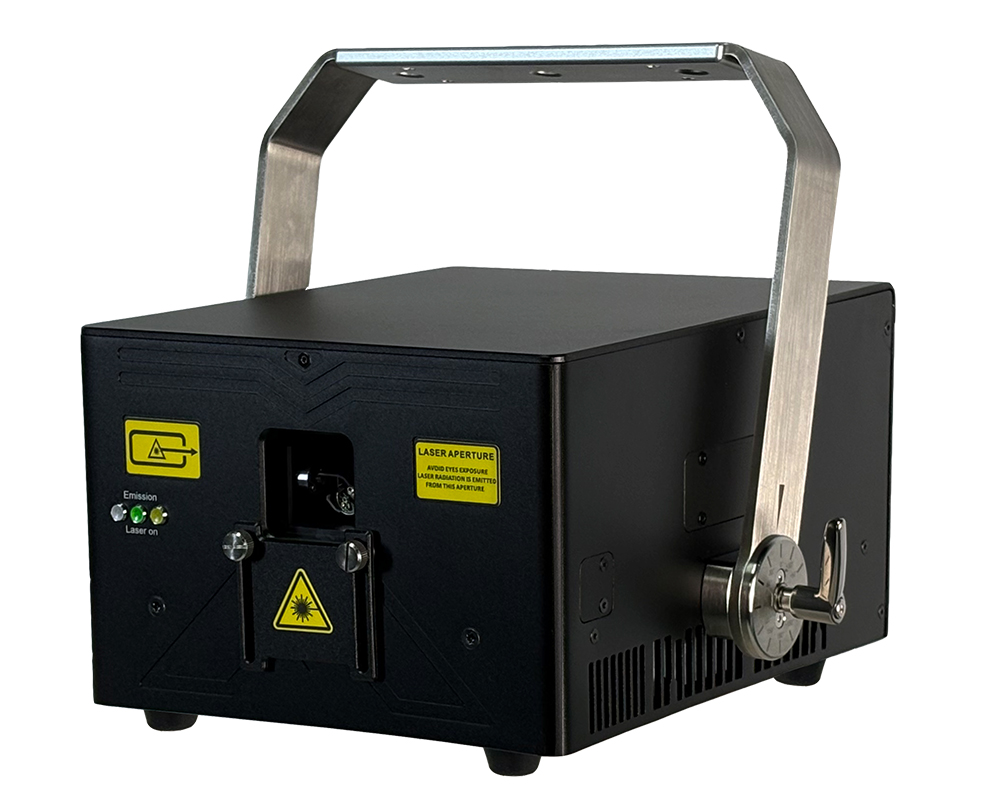

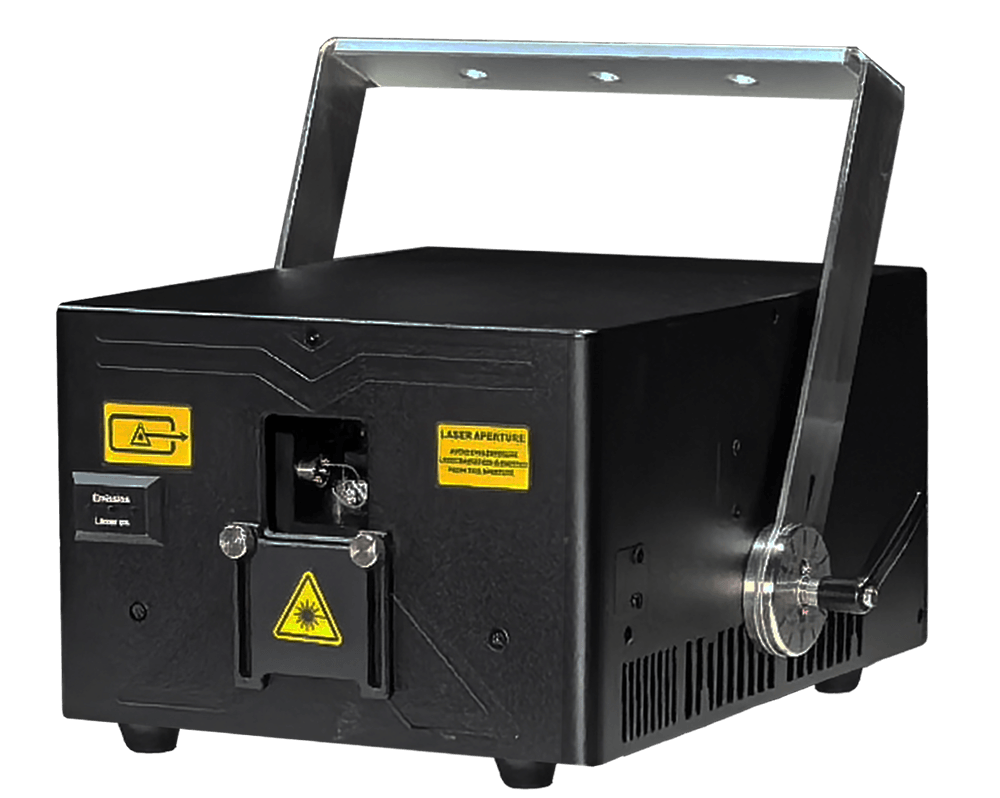

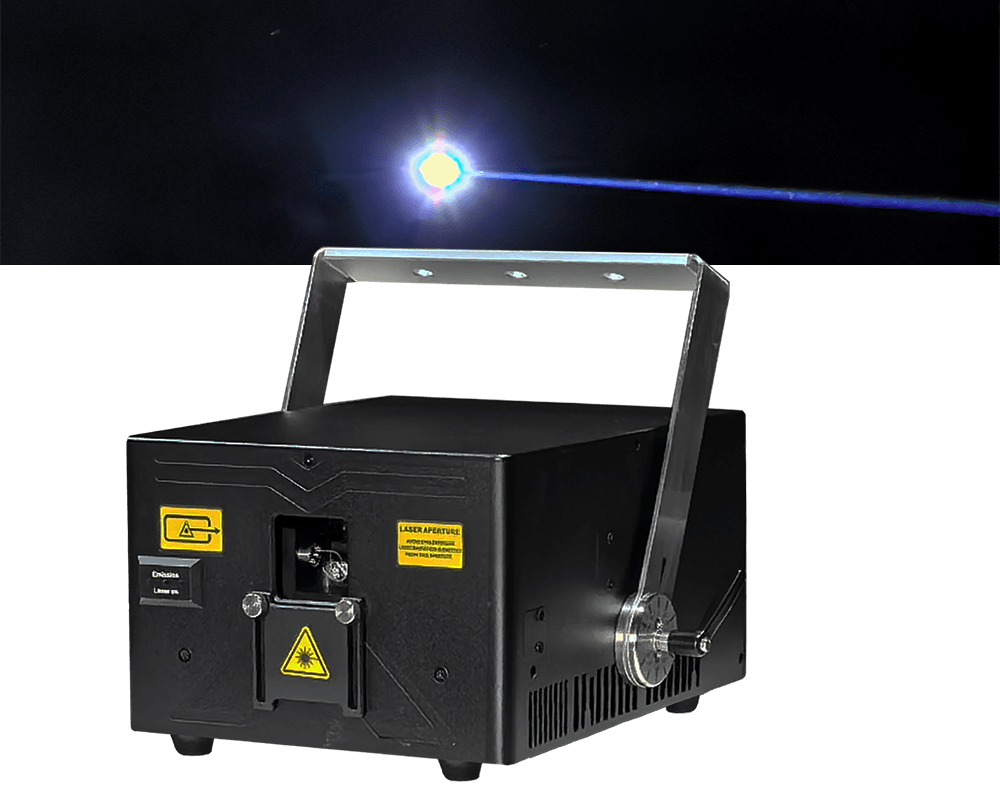

PR14000-RGB

PR10 SERIES is a breakthrough new product line that guarantees optical quality and meets users' demands of compact size and lightweight. RGB sources are FAC processed and fully corrected, the overall beam quality of the whole series will be guaranteed. Compared with the previous generation of systems with the similar power range, external laser colour adjustments will be available for PR10 series, and R/G/B power ratio is increased as well.

Even more commendable is that the compact physical size can also provide excellent heat dissipation, so this series will have a good performance regarding service time.

Product Parameters

Video Presentation

Data Download

Specification

ModelsPR14000-RGB
Source | Type:Semiconductor diode | Full-colour RGB laser projector

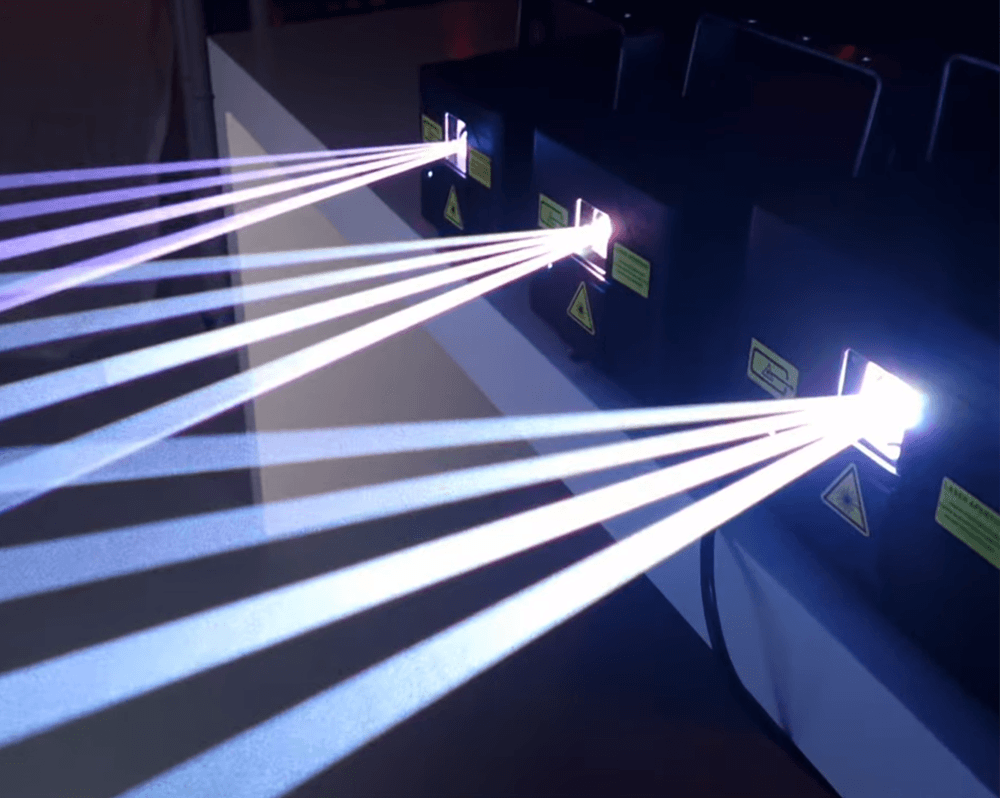

Suitability:Indoor/outdoor laser displays [atmospheric, abstract, text, animations]
Beam Size@Aperture[mm]7*3.5mm
Divergence(full angle)1.0mrad

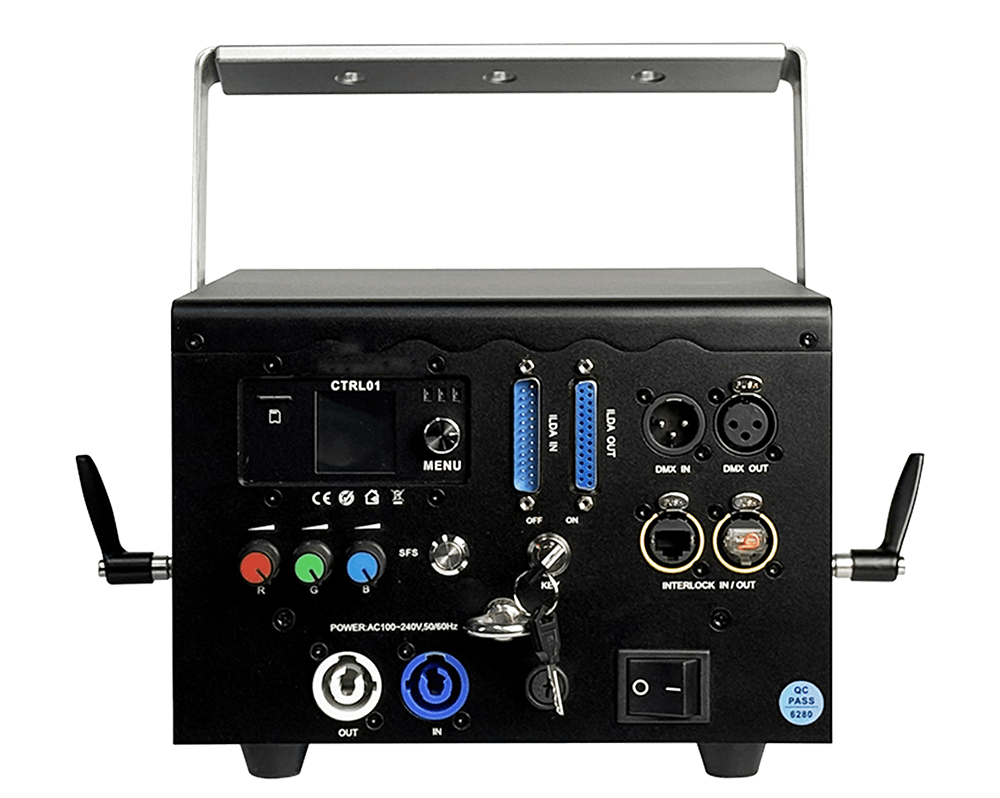

System controlAuto, Sound to light, SD-Card, DMX512 , ILDA ( FB4 on request)
Scanning System39kpps ILDA@8°±30°MAX
Wavelength [nm]R|638 G|520nm B|445nm
Laser head Power [mW]R|4200 G|4800 B|5000
Total Output [W]14W
Modulation [kHz]100 | Analogue
Power Supply100~240V /50~60Hz
Power Consumption [W]<210W
Weight [kg]9.80Kg
Size [WxHxD, mm]313*237*153mm
Cooling:Heatsink+TEC Cooling+Casting Aluminum Housing+Fans
Packaging:Road case
Operation temperature [°C]:minus 20℃ to 40℃
